An Overview of the Inner Workings of Electrical Wiring in Your Home: Everything You Need to Know

Posted by Local Electrician Inner West on 15 Jul 2024

Electricity is an integral part of our everyday lives, powering everything from the lighting in your homes, to devices we use every day.  However, electric systems may be complicated, and understanding how they function can be challenging. In this guide, we’ll break down the elements of an electrical system, and explain how circuits work to power appliances and devices. Our residential electricians can handle any electrical jobs you need.

The components of an electrical system

An electrical system is comprised of several essential components that work to provide power throughout homes. These include:

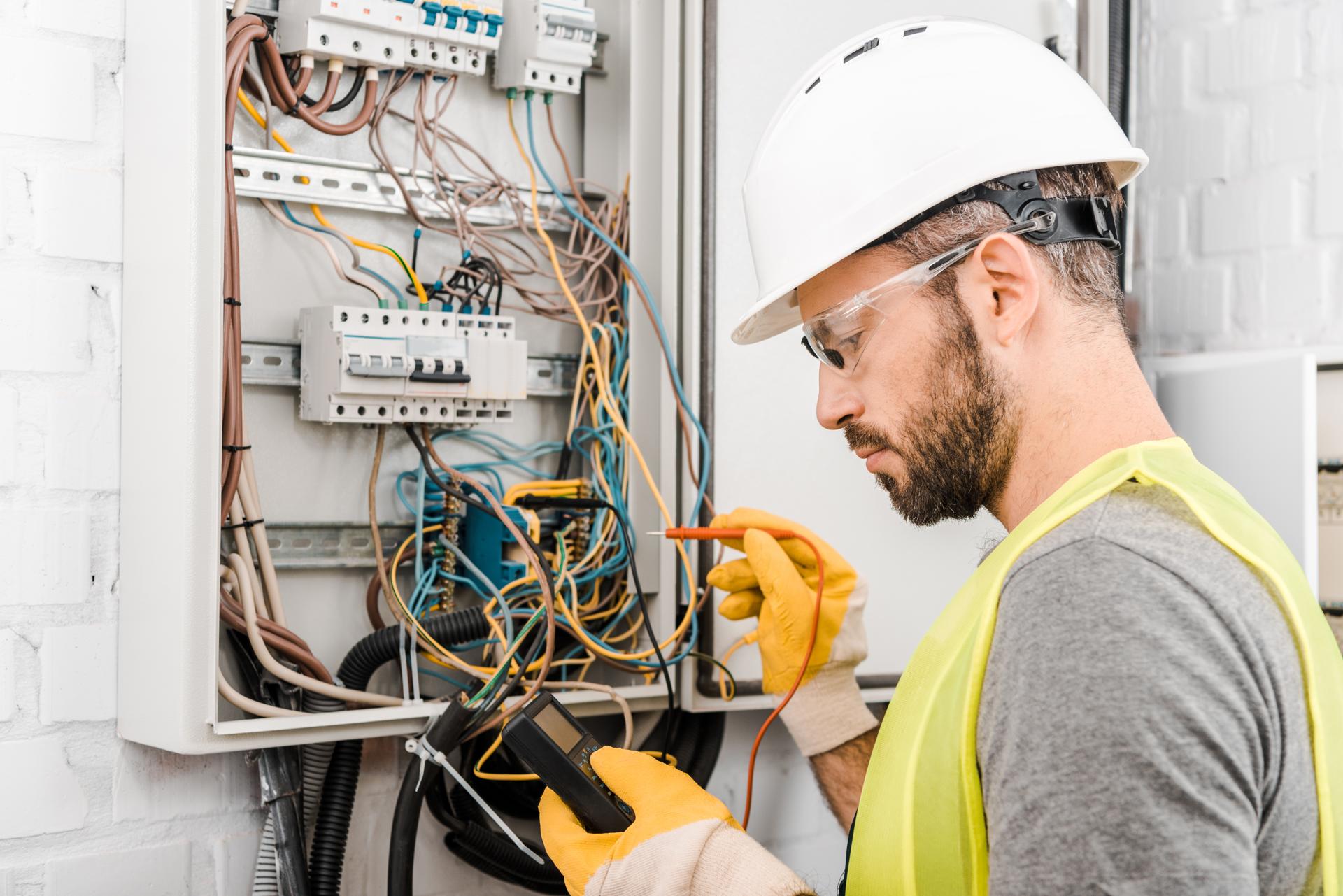

Breaker box is the central source of electrical power in homes that is where electricity is divided into different circuits

Outlets and switches: the points at which electricity is supplied to appliances and devices

Wiring: the electrical wires that carry power from the breaker box to the outlets and switches

Electrical appliances and devices: the appliances and devices that require electricity to function.

Electrical Circuits

An electrical circuit is a pathway that allows electricity to flow from the main source (the breakers box) to appliances and devices within a home. There are two kinds of electrical circuits in the home: 120-volt circuits and 240-volt circuits. 120-volt circuits are utilized for most household devices and appliances, whereas the 240-volt circuits are designed to power larger appliances, such as dryers, air conditioners and electric ones.

Electrical circuits work by completing an electrical loop that allows power to flow from the source to the device or appliance. The loop is comprised of a hot cable that is the conduit for electricity and a neutral wire which completes the circuit, and a ground wire , which is a path for electricity to travel to the ground in case there is a problem.

Understanding Electrical Wiring

Electrical wiring is available in many different kinds, including non-metallic sheathed cable (NM) as well as armored cables (AC) and conduit. Each kind has its own advantages and drawbacks and the selection of the wiring type is contingent upon the particular requirements of the installation.

Wiring conducts electricity through a flow of electrons through the wire. The electrons travel through the wire from source, to device or appliance returning to the source through the neutral wire. It is crucial to make sure that the wiring is put in place and maintained properly, since improper wiring can cause electrical dangers like shocks and fires.

Common Electrical Problems

The most frequent electrical problems found in homes include tripping breakers, flickering lights, and disconnected outlets. These problems can be caused by a variety of factors that include overloading circuits, loose connections, and faulty wiring.

If you are experiencing one of these problems, it’s crucial to pinpoint the cause and take appropriate actions to rectify the issue. In some cases it may be necessary to contact a licensed electrician to look over and fix the wiring.

Concluding as well as a Call to Action

Understanding the way electrical wiring functions is vital to ensure the safety and security of your home’s electrical system. By following the guidelines outlined in this guide to stay safe and prevent potential hazards.

Should you ever have questions or concerns about your home’s electrical system, don’t hesitate to contact Local Electrician Inner West. Our licensed electricians has the experience and knowledge to address all of your electrical requirements. Contact us at 1300 941 876 to schedule a consultation.

FAQ

What are the signs of a faulty electrical wiring?

The signs of an electrical wiring issue may include tripping breakers flickering lights, or dead outlets, to name a few.

What is the best time to schedule my home’s electrical system inspected?

It’s recommended that you get your home’s electrical system inspected by an authorized electrician at least every 10 years.

What is the life expectancy of electrical wiring?

The life span of electrical wiring is based on a variety of factors, including the kind of wiring used, the location it’s located in, and the quality of the installation. The majority of electrical wiring can last at least 30 years or more, with correct installation and care.

Do I have the ability to fix electrical issues myself or should I always employ an electrician?

Although some electrical issues are fixable by homeowners, it is advised to hire an authorized electrician for most electrical repairs. Attempting to fix electrical problems without the proper education and expertise is risky and may cause damage or injury the property.

What should I do if I encounter an electrical problem within my home?

In the event of an electrical problem, the first step is to cut off the power supply to the area affected by turning off the fuse or breaker. After that, you should contact an accredited electrician to inspect and repair the problem as quickly as possible.

By following these guidelines, you can ensure the security and reliability of your home’s electrical system , and avoid potential hazards. Remember, when it comes to electrical repairs and installations, it’s always best to leave it to the experts. Reach out to Local Electrician Inner West at 1300 941 876 to discuss all of your electrical requirements.
